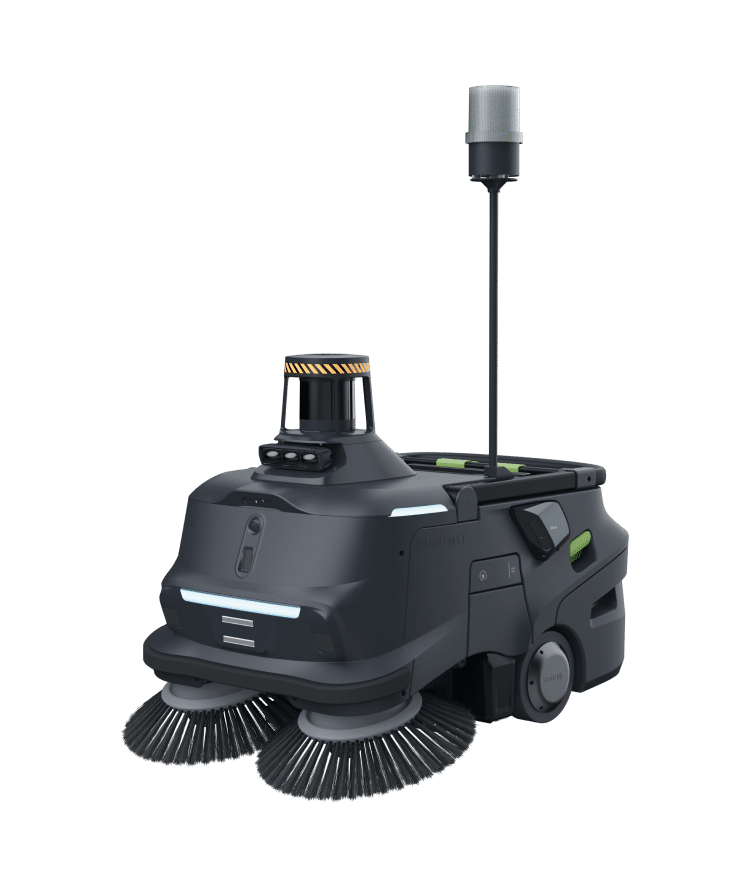

PUDU Phoenix MT1 Max
3D Perception Integration
Magic Cleaning
Intelligent Active Interaction
Empty the Facility of Any Dirt & Trash
AI Adaptive Cleaning
Covers Up to 100,000㎡
Smart Obstacle Avoidance Upgrade
24/7 Continuous Operation
3D Perception Enhancement
Equipped with a 3D perception system (3D LiDAR + multi-sensor fusion), MT1 Max maps environments accurately, detects obstacles in real time, and navigates efficiently even in high ceilings, nighttime, or heavy interference, ensuring reliable performance in complex cleaning tasks.

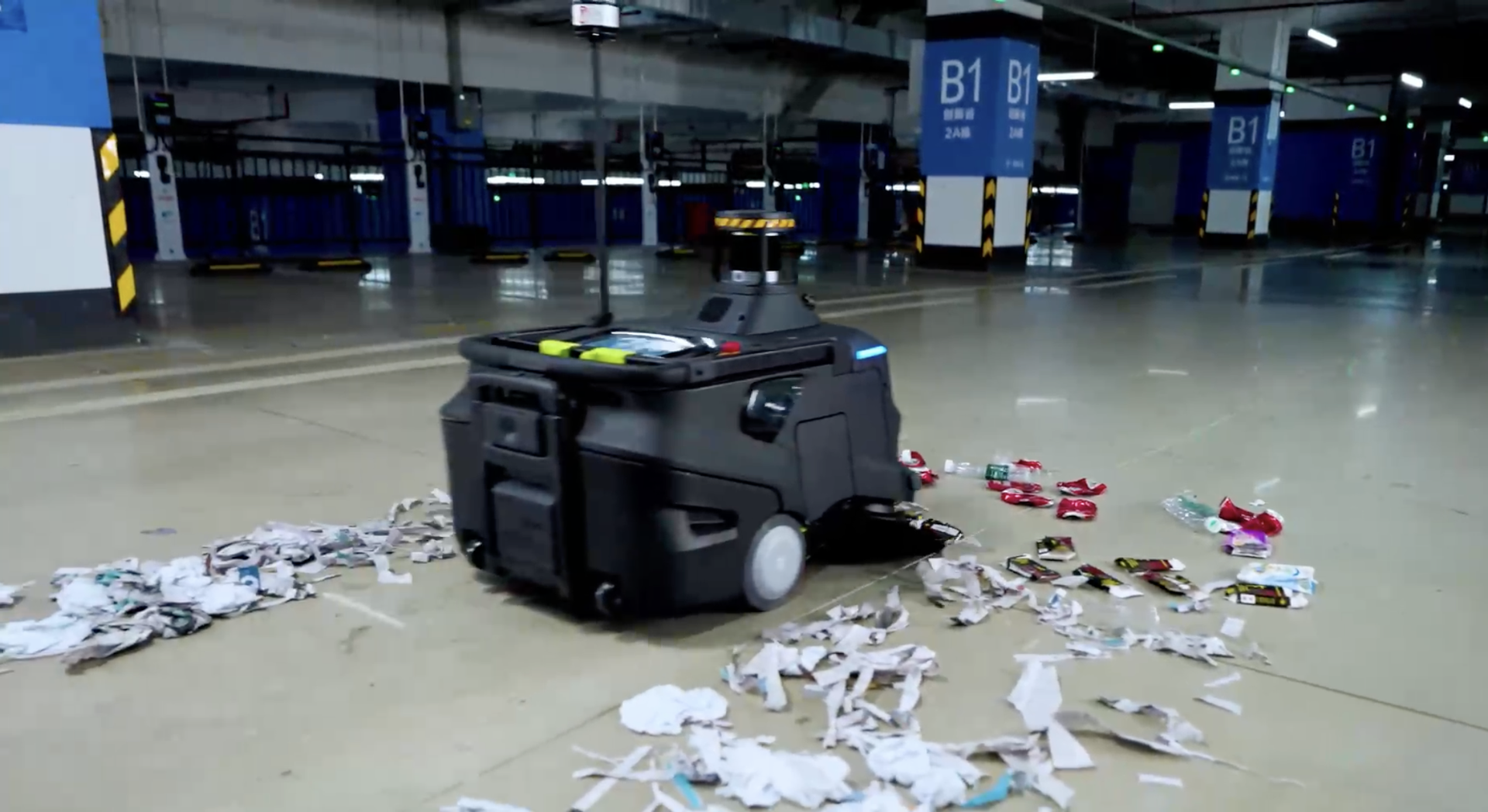

Empty the Facility of Any Dirt & Trash
MT1 Max removes everything from cigarette butts and paper scraps to large bottles in a single sweep.
- 70cm Sweeping Width
- 35 L Trashbin Capacity
- 0cm Edge to Edge Cleaning

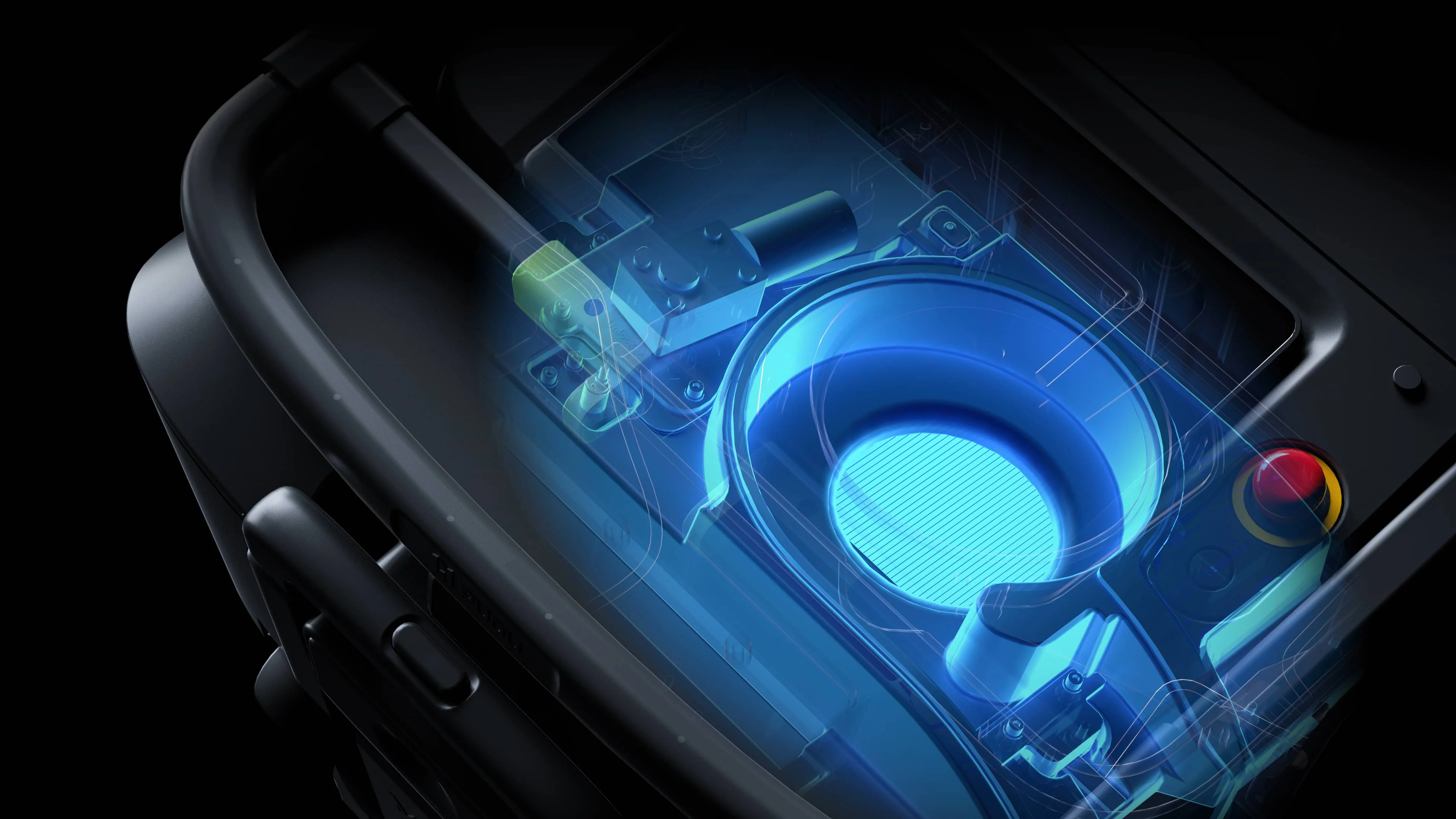

Automatic Filter Cleaning
Automatically cleans the filter for an integrated loop of operation and maintenance, minimizing manual intervention and maximizing continuous productivity.
Magic Cleaning

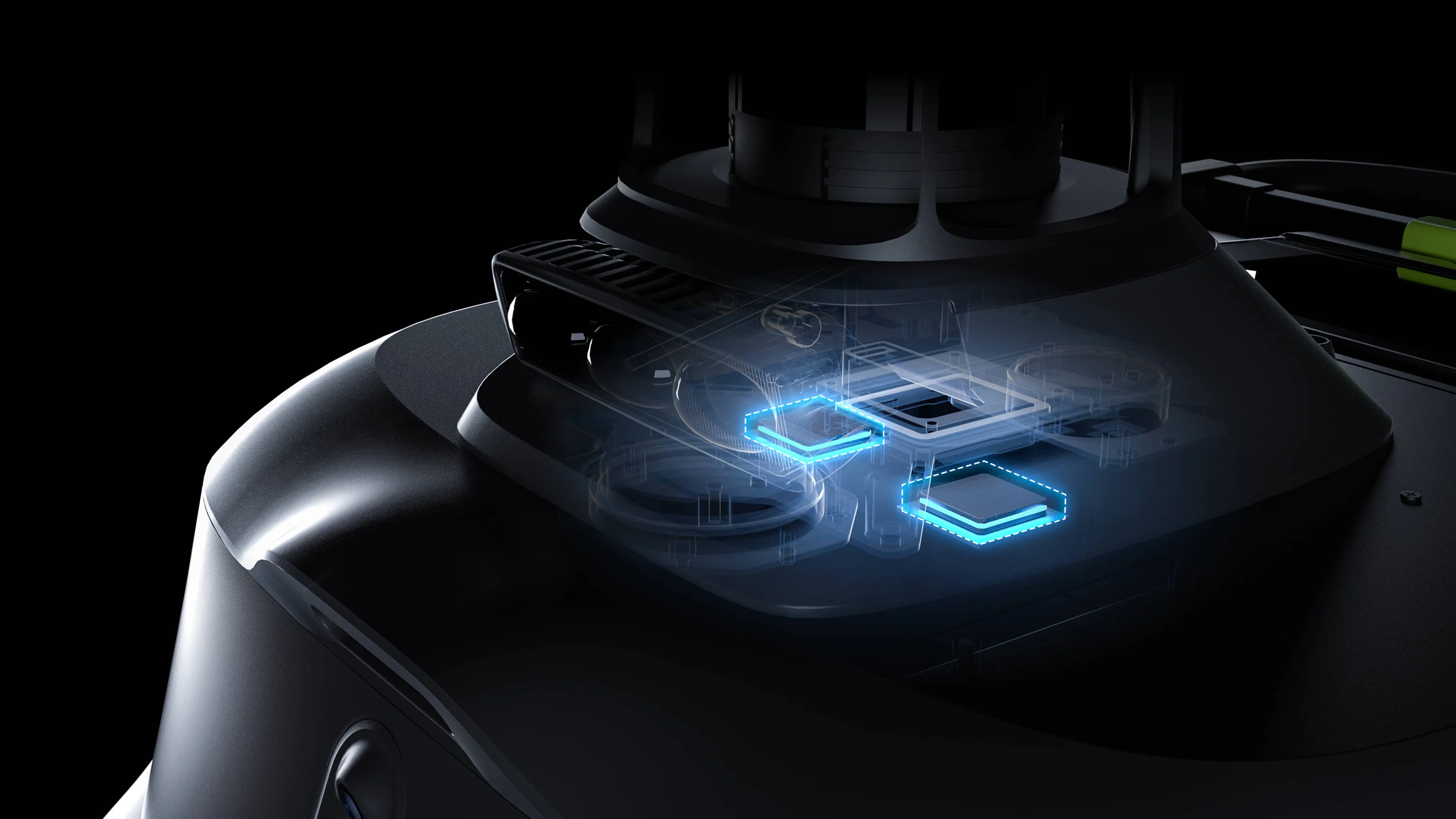

MT1 Max features a dual-chip architecture for faster, more precise AI processing with built-in redundancy. Hardware-software collaboration lets sensors and motors work in sync, enabling AI adaptive cleaning, trash recognition, and spot cleaning.
AI Adaptive Cleaning Strategy
Cleaning mode adaptation: Light debris triggers automatic power reduction to prevent scattering; heavy debris increases power for thorough cleaning. Cleaning posture adaptation: Automatically adjusts angle to guide debris into the dual brush gap, reducing misses.

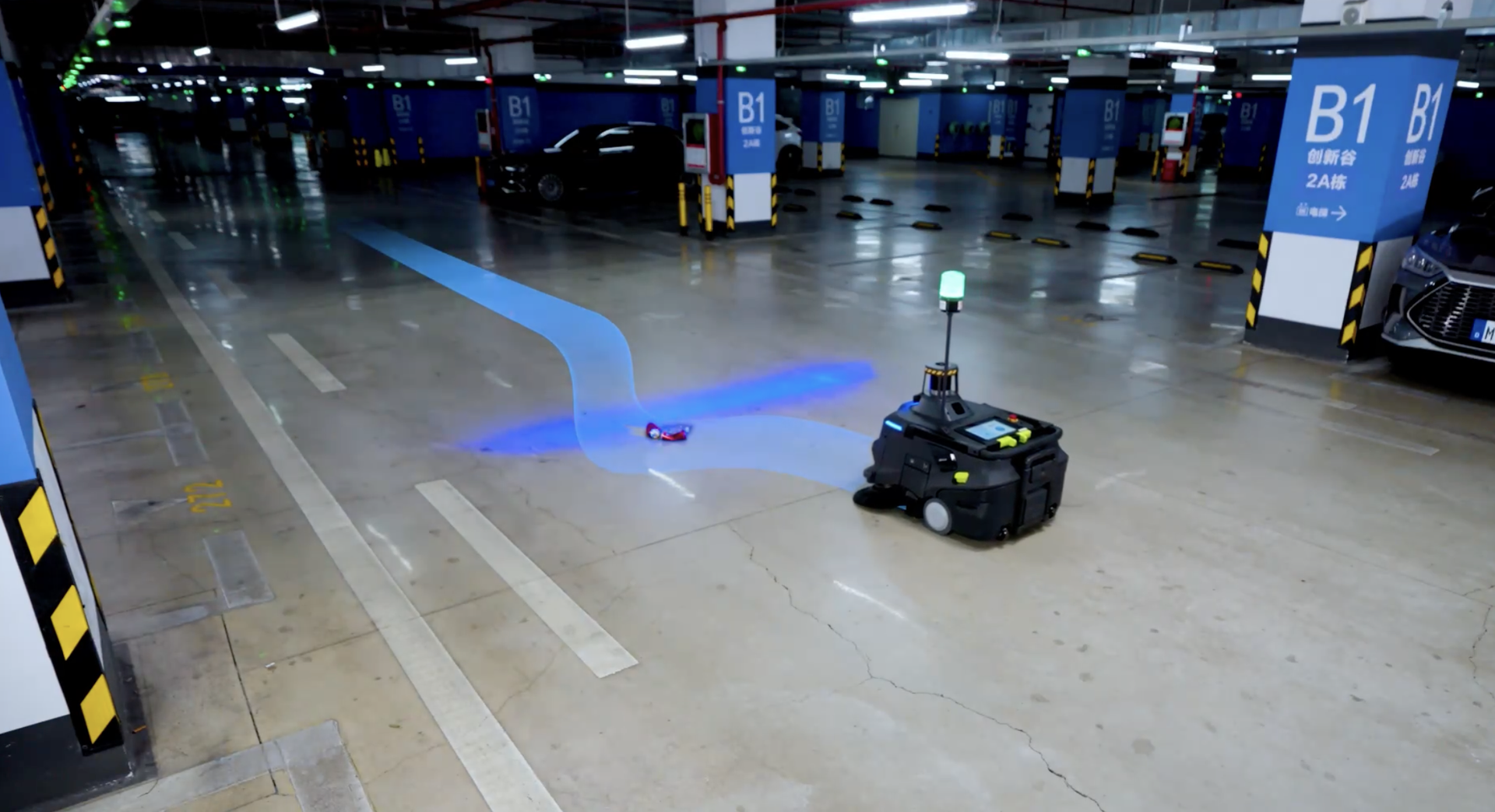

Smart Obstacle Avoidance Upgrade
MT1 Max features a fully upgraded obstacle avoidance system with 3D LiDAR, enabling smarter dynamic avoidance and differentiated strategies.

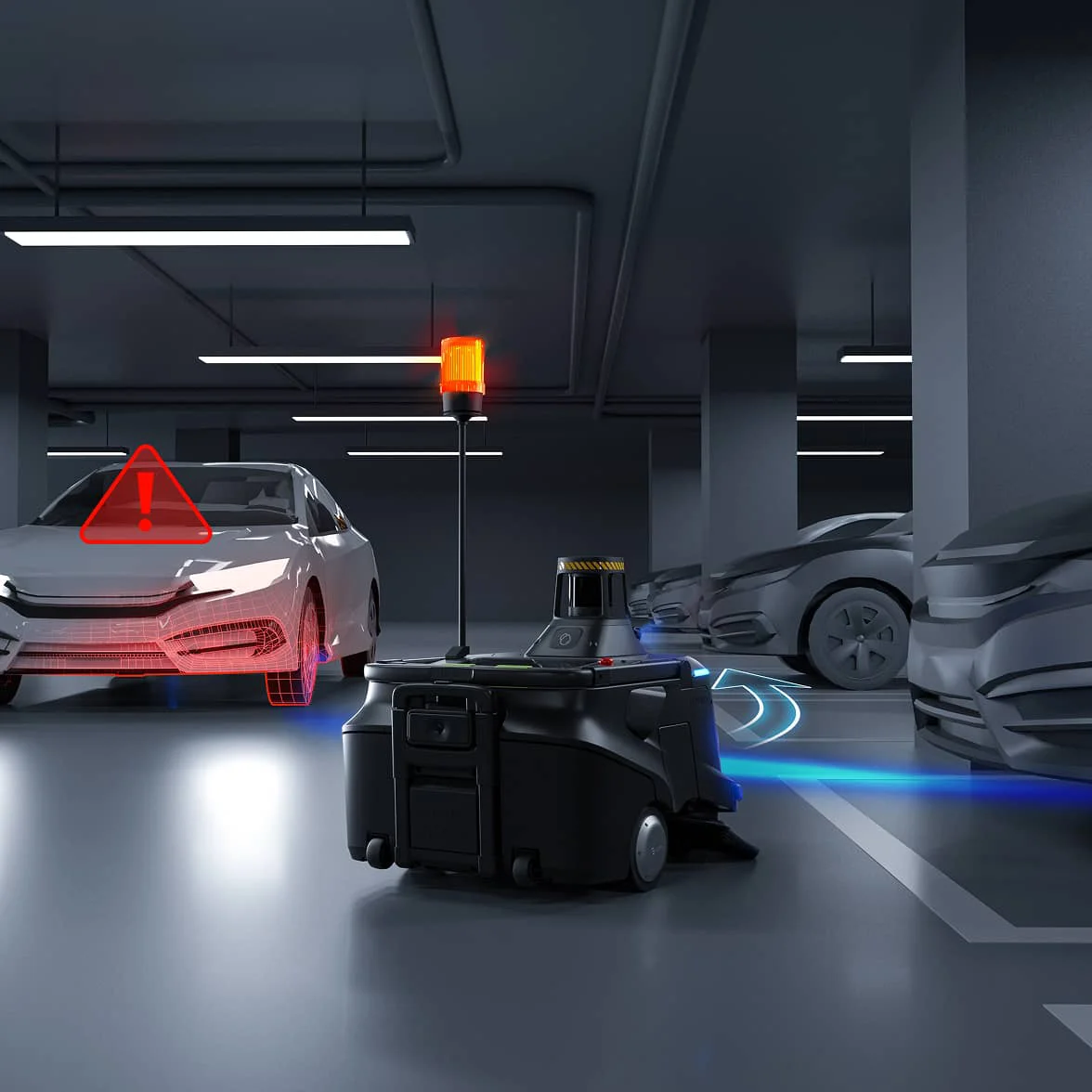

Dynamic Vehicle Avoidance
MT1 Max can stop to let vehicles pass, pause at lane entrances, or edge aside while keeping the route clear and traffic undisturbed.
Pedestrian and Animal Avoidance
Quickly reacts to sudden “pop-out” movements or animals crossing, enhancing overall safety.
Intelligent Active Interaction
MT1 Max features multi-dimensional safety upgrades. Combining structural protection with intelligent responses, along with audible and visual alerts, slope climbing and obstacle overcoming, and proactive rain avoidance, it actively senses and intelligently responds to its environment.

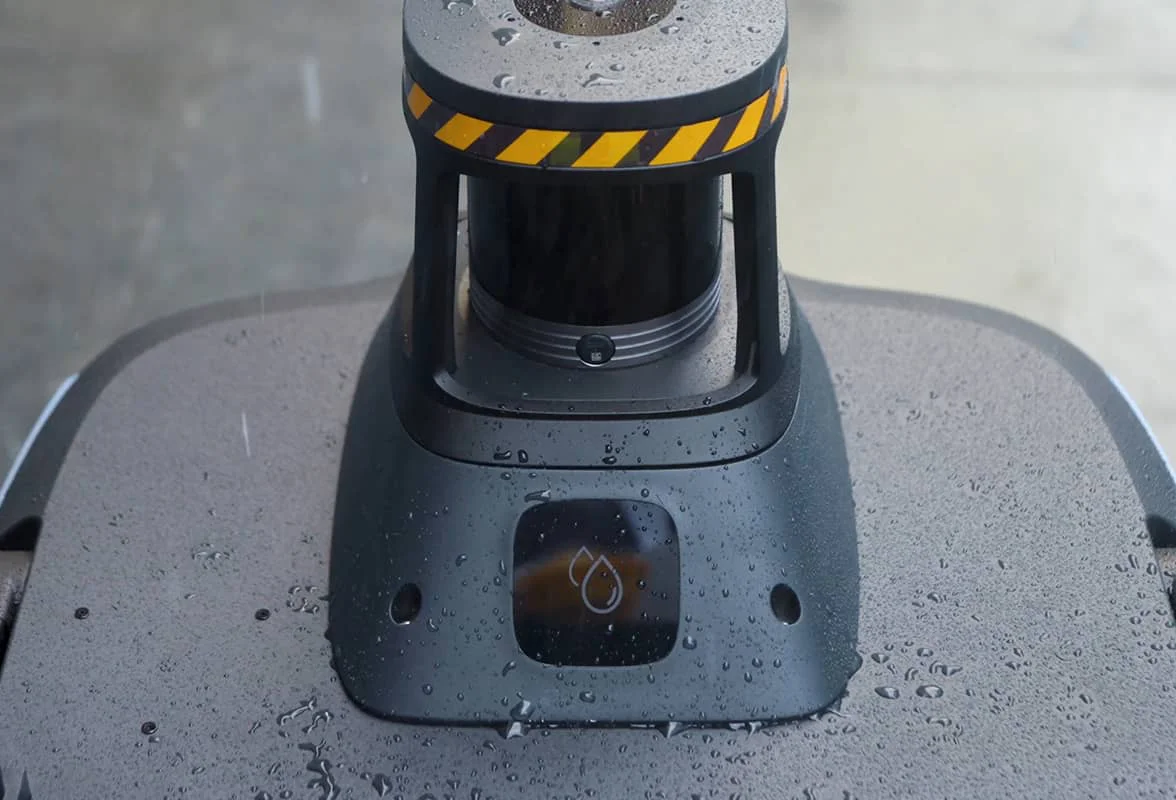

Full IP54 sealing defends against dust ingress and water spray for consistent reliability. Water-drop sensor*: automatically detects water drops and triggers a protective avoidance mode, guiding the robot to safe zones while reducing electrical risks.

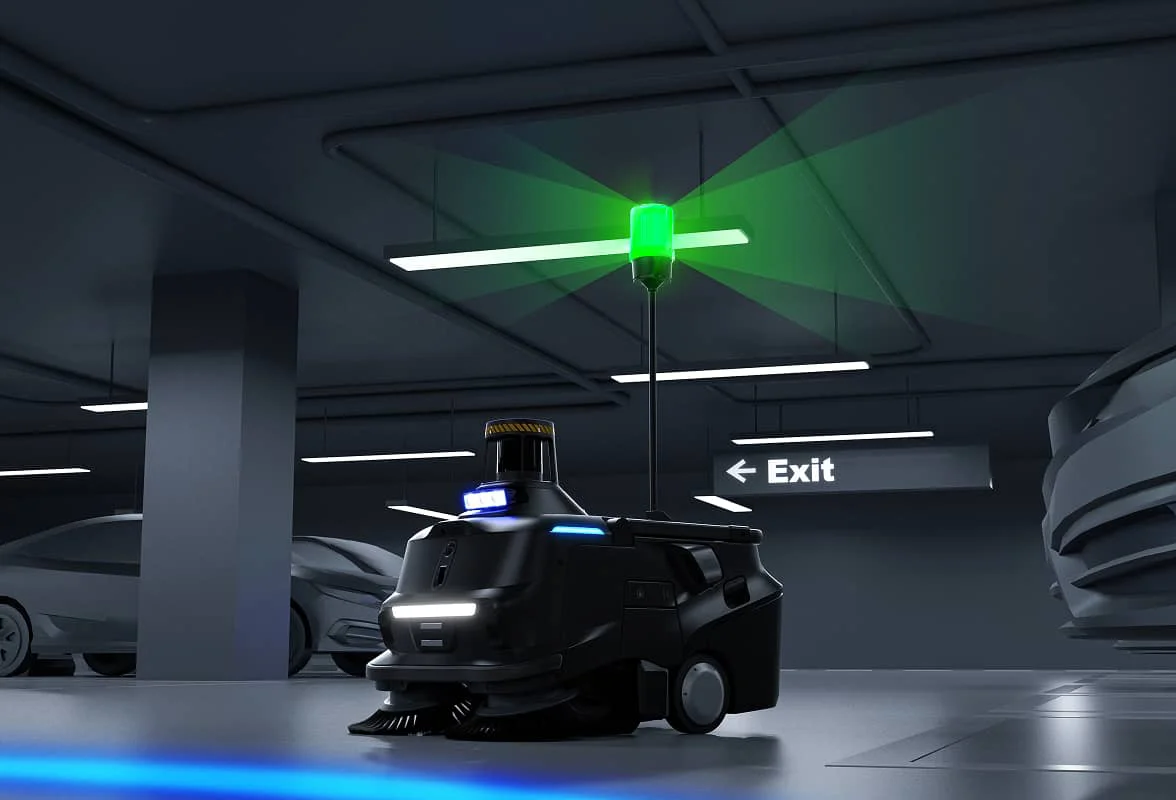

Equipped with a 1.2-meter high warning light and a safety projection light, combined with audible and visual alarms, MT1 Max enhances visibility for pedestrians and vehicles, proactively preventing potential risks.
24/7 Continuous Operation

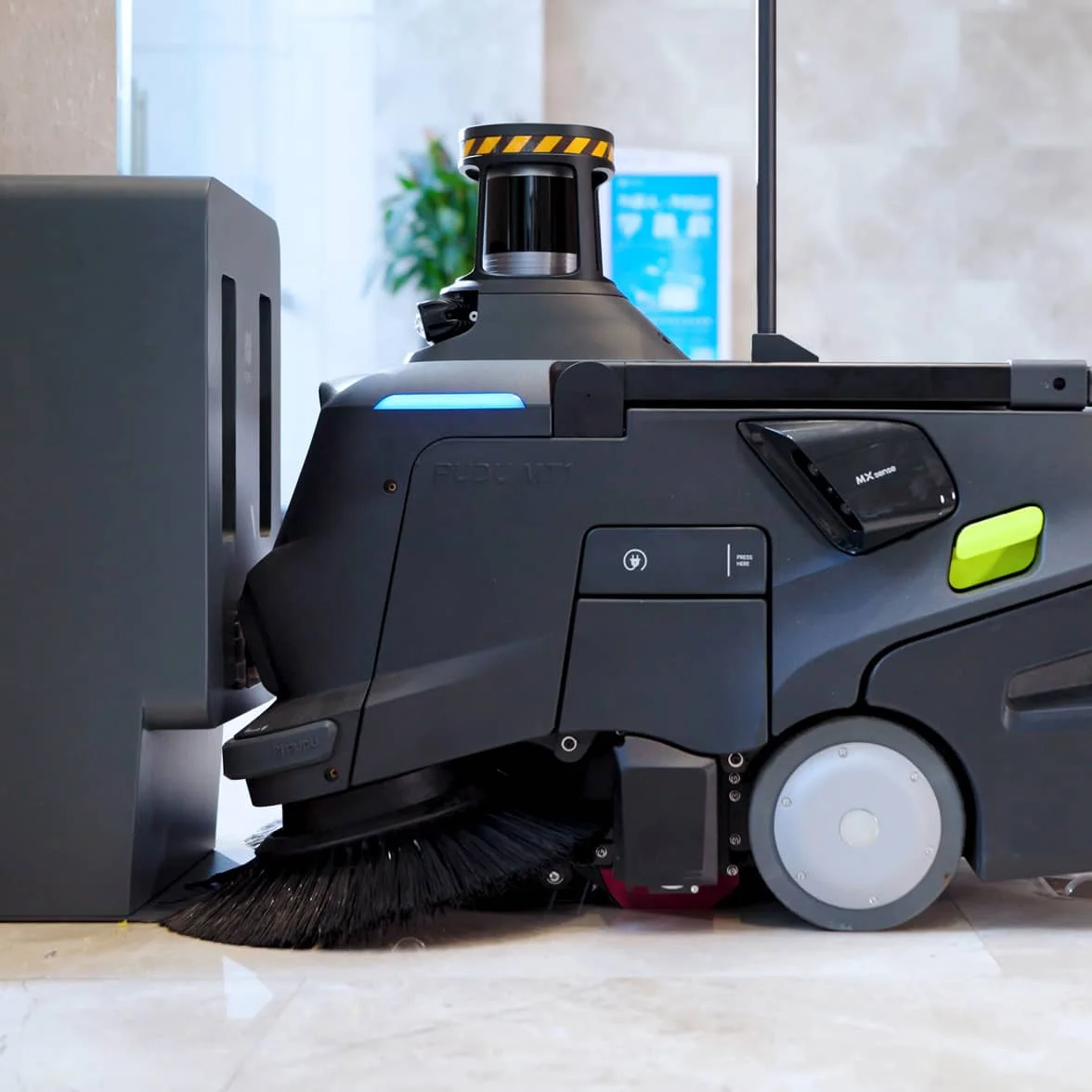

High-capacity batteries, rapid charging, and auto-docking technology enable continuous 24-hour operation to meet high-frequency cleaning demands without downtime.
Unleash the Power of IoT

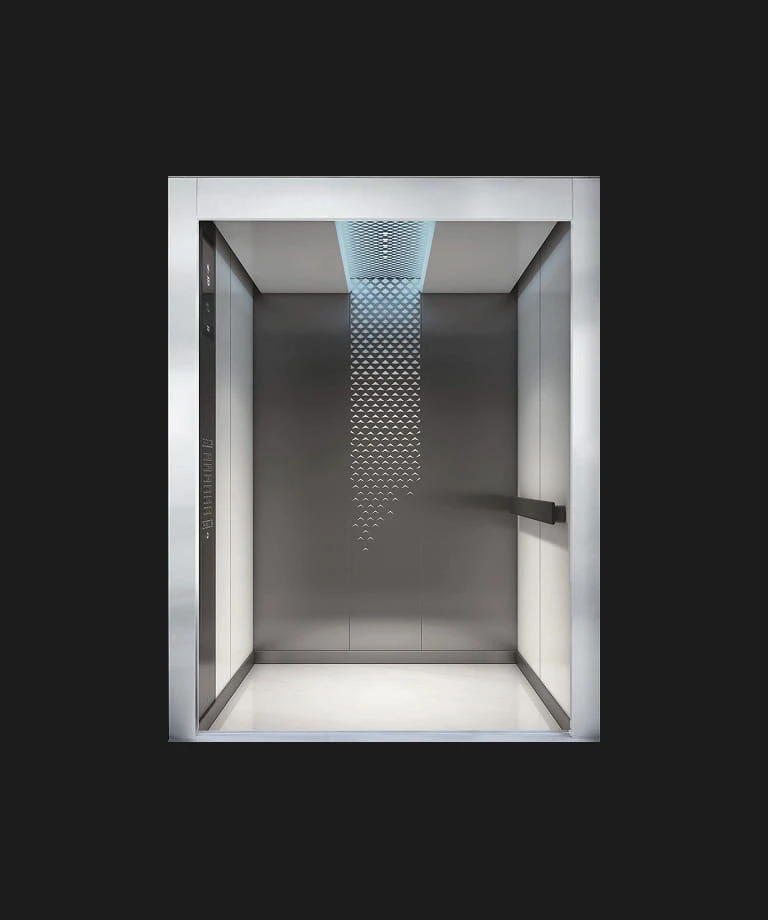

Elevator Control
E-Gate Control

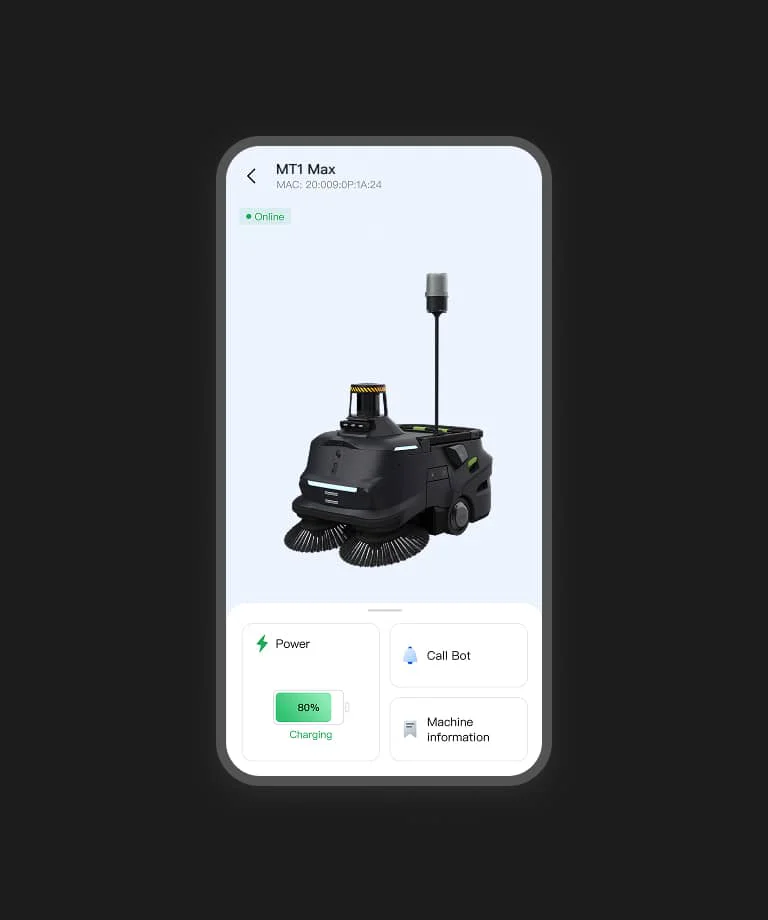

Manage with PUDU Link App

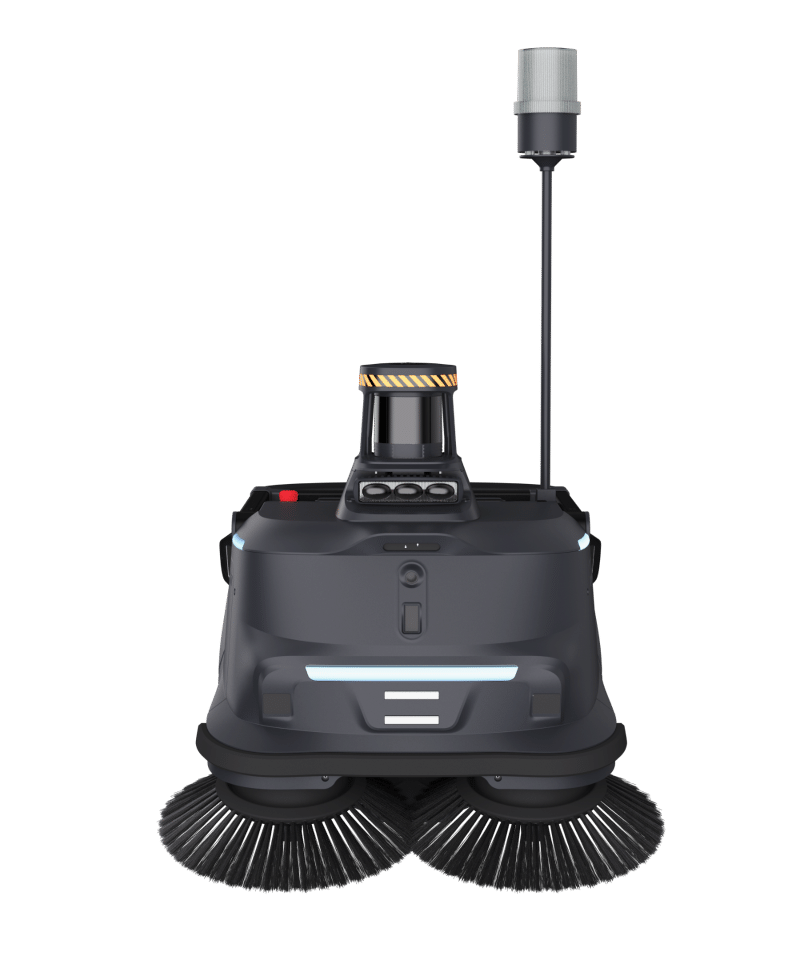

Product Overview
Dimensions
840 × 600 × 675 mm(33*23.6*26.6 in)
Cleaning Capabilities
Sweeping
Charging Time
＜3.5 h
Battery Capacity
60 Ah
Cleaning Width
70 cm (with side brush)(27.6 in)
Waste Container Capacity
35 L(9.25 US gal)
Weight
85 kg(187.39 lbs)
Cleaning Performance
Cover Cleaning Max. 2200㎡/h(23680.6 ft²/h)Spot Cleaning Max. 7000㎡/h(75,347 ft²/h)
Run-time
5-10 h, Standard Mode 8 h
Cruise Speed
0.2 m/s ~ 1.2 m/s (adjustable)(0.66 ft/s–3.94 ft/s)
Navigation
VSLAM + Marker + 3D LiDAR SLAM
